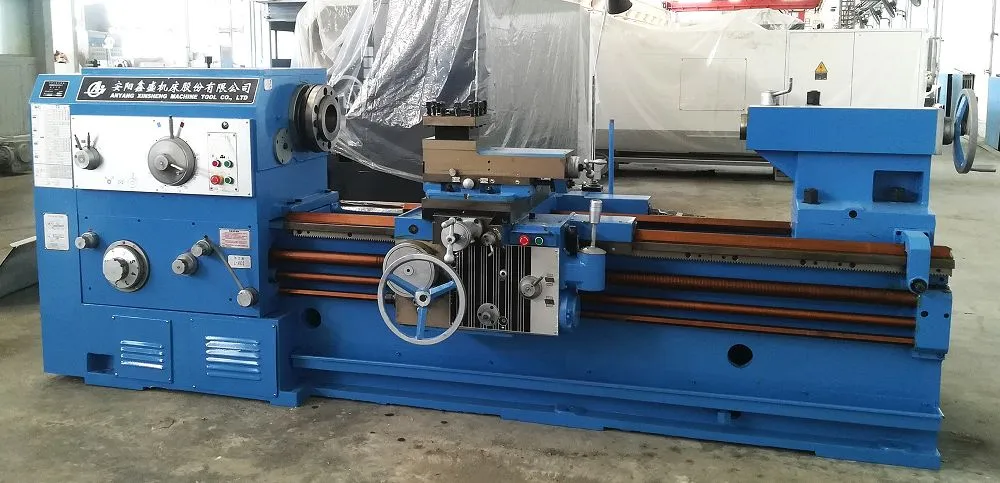

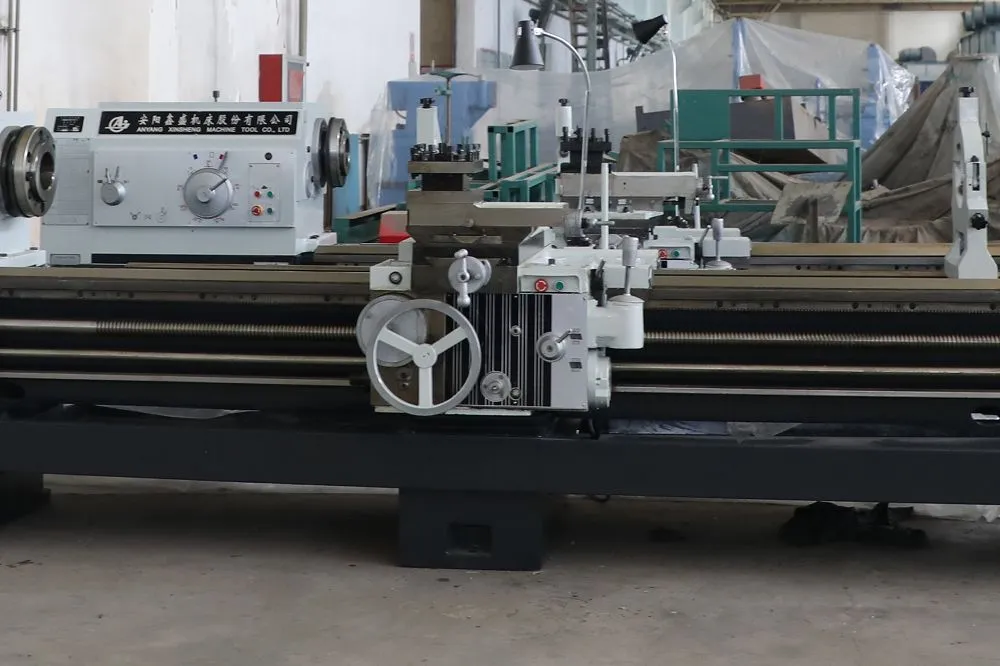

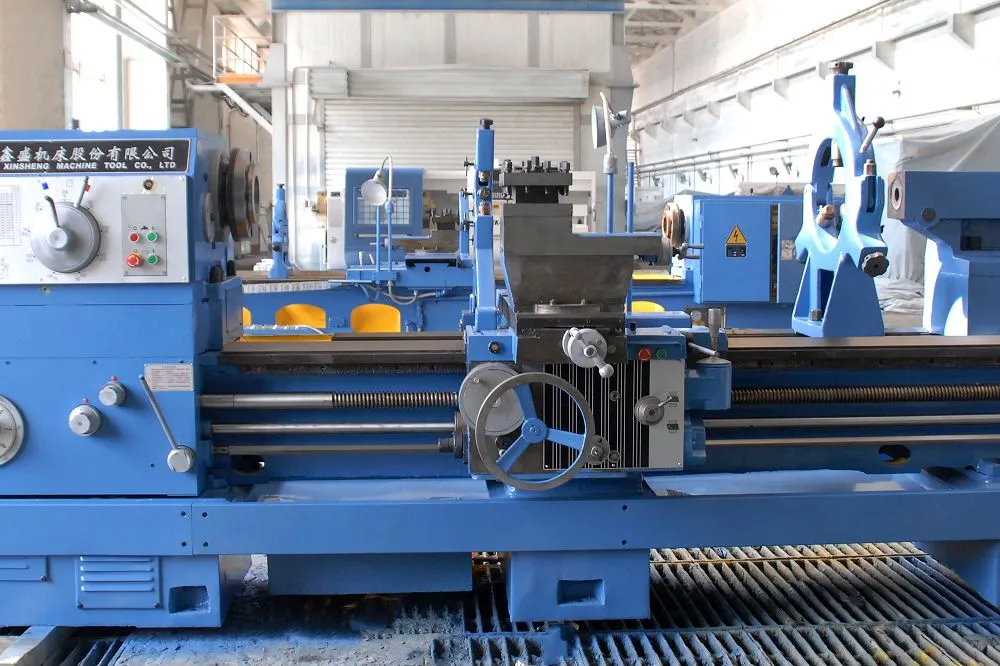

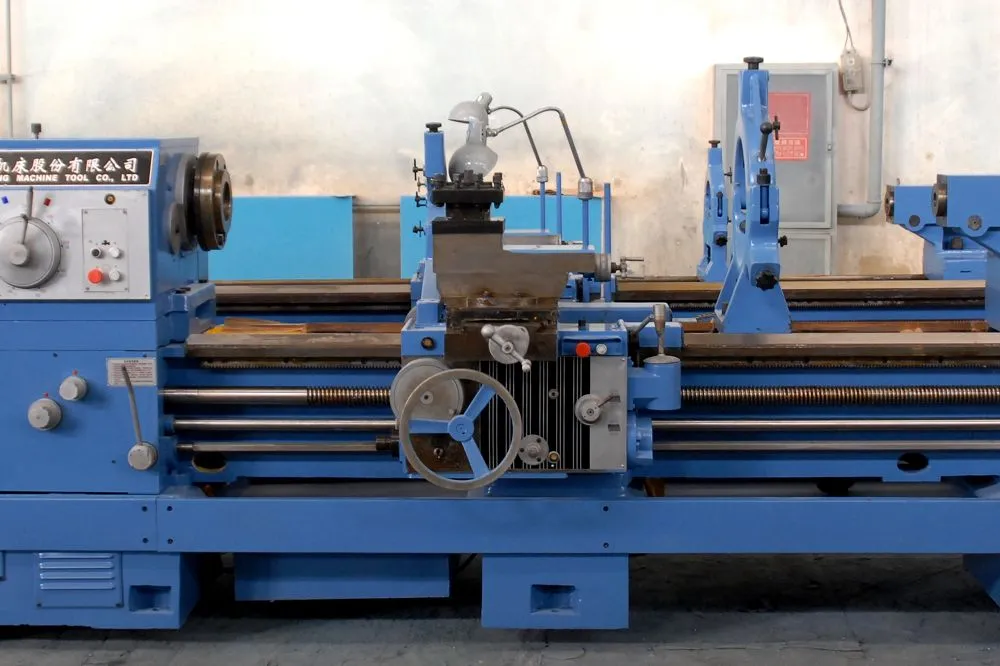

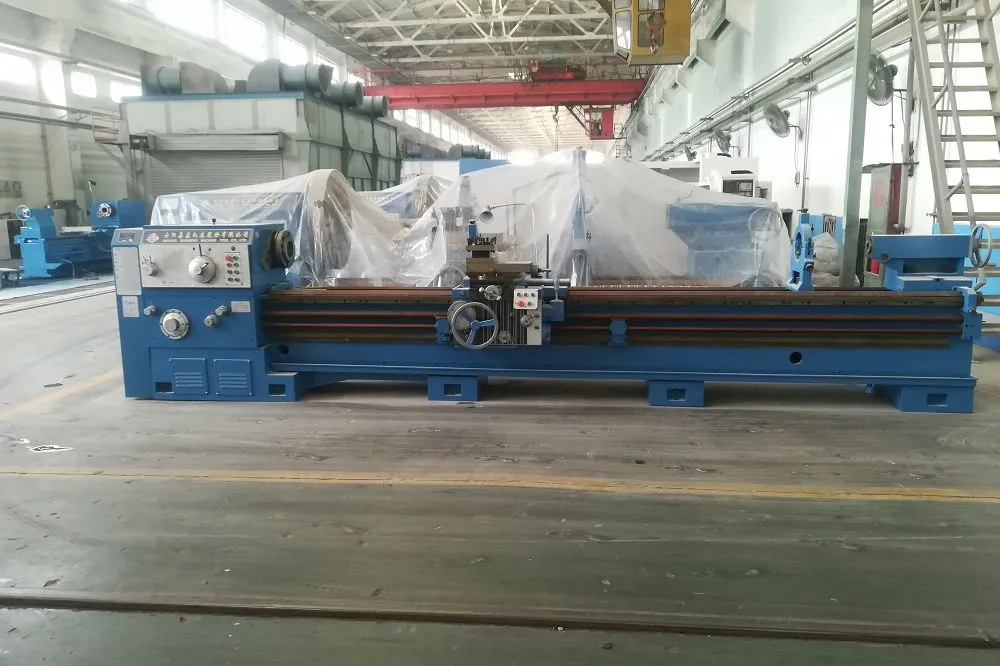

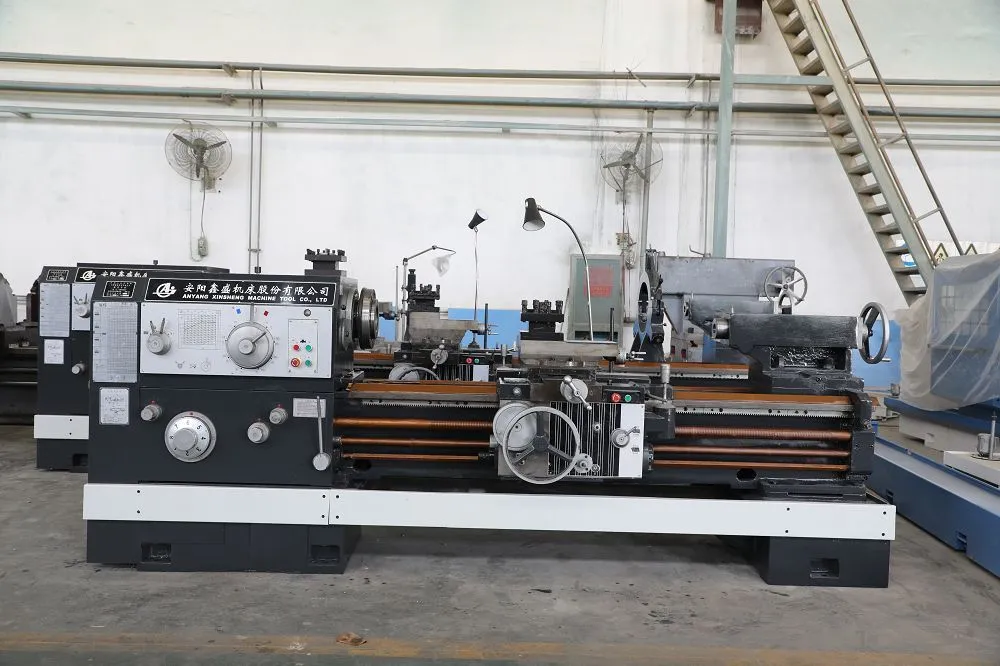

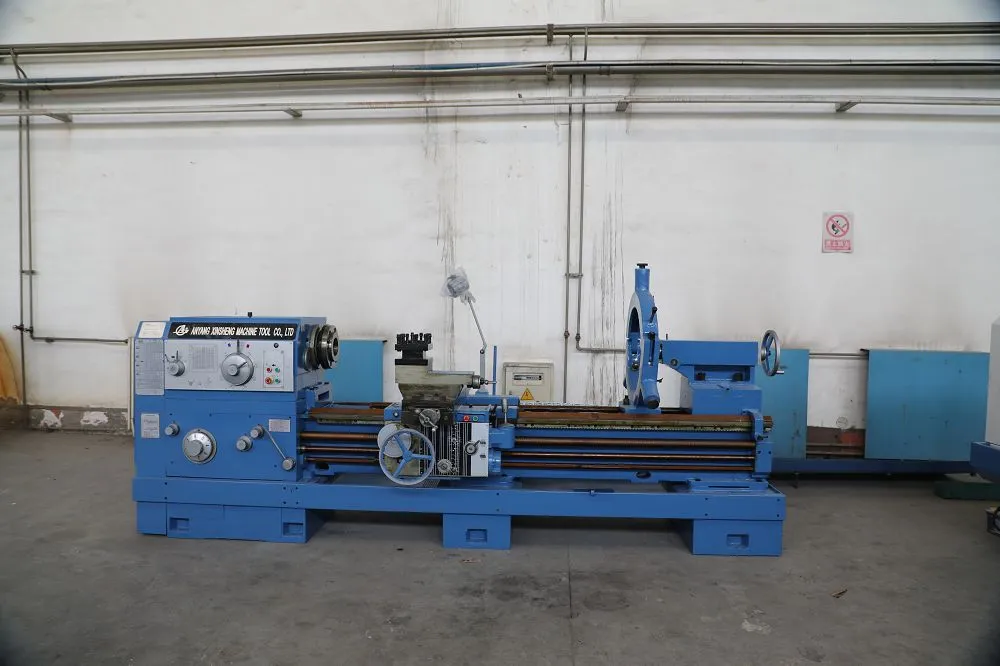

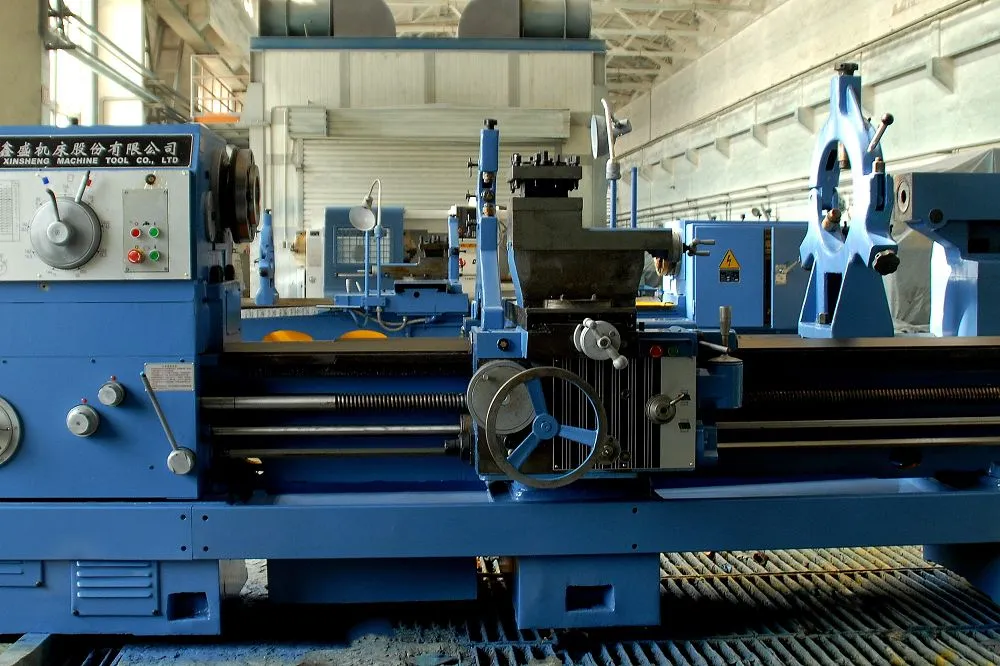

Mini tig lathes yog tsim rau tig sab hauv thiab sab nraud cylindrical, conical thiab viav vias nto nrog rau ntau yam metric, nti, module thiab diametric suab threads. Lawv kuj tuaj yeem siv rau broaching roj grooves thiab txoj hauv kev tseem ceeb.

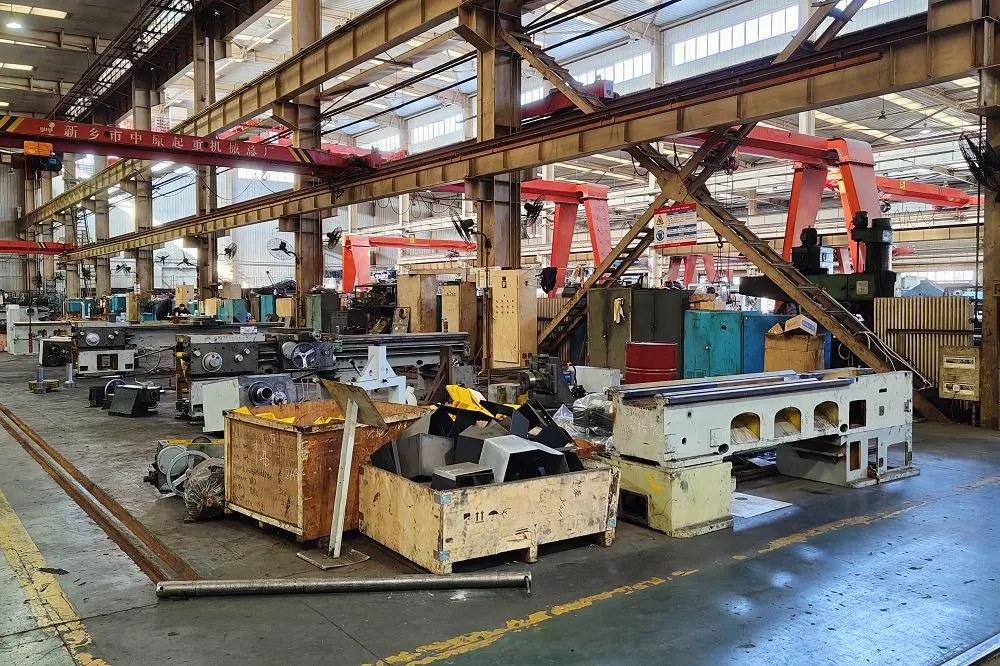

Anyang XS tshuab cuab yeej nyob hauv Anyang City, Henan Province. Nws yog ib tug qub tub rog chaw tsim tshuaj paus nyob rau hauv lub teb ntawm me me thiab nruab nrab - loj zoo tib yam lathes nyob rau hauv Tuam Tshoj. Nws cov khoom tau txais kev pom zoo los ntawm cov chaw ua haujlwm me me thiab cov tsev kawm ua haujlwm rau lawv cov nqi siab thiab kev ua haujlwm zoo.

Txhim khu kev qha qauv, txaus rigidity

Xinxing zoo tib yam tshuab dhos feem ntau siv HT250 siab-qib cam khwb cia hlau txaj, uas yog kho nrog kev laus laus. Cov qauv ruaj khov, kev vibration kev ua tau zoo, thiab nws tuaj yeem tswj tau qhov raug zoo thaum lub sij hawm txiav txuas ntxiv, haum rau kev ua haujlwm ntawm ntau yam hlau xws li nruab nrab thiab qis carbon steel, alloy steel, aluminium, thiab tooj liab.

Kev qhia tshwj xeeb, kev xaiv nplua nuj

Cov khoom lag luam npog ntau yam tshwj xeeb xws li CW6180, CW6280, thiab CW61100. Txoj kab uas hla ntawm txoj kab yog los ntawm 320mm mus rau 1000mm, thiab qhov chaw nyob deb tuaj yeem xaiv tau raws li cov kev xav tau, muaj peev xwm ua tau raws li cov kev xav tau ntawm machining los ntawm cov khoom me me mus rau nruab nrab - qhov loj me thiab cov disc- zoo li workpieces.

Mature kis tau tus mob, yooj yim txij nkawm

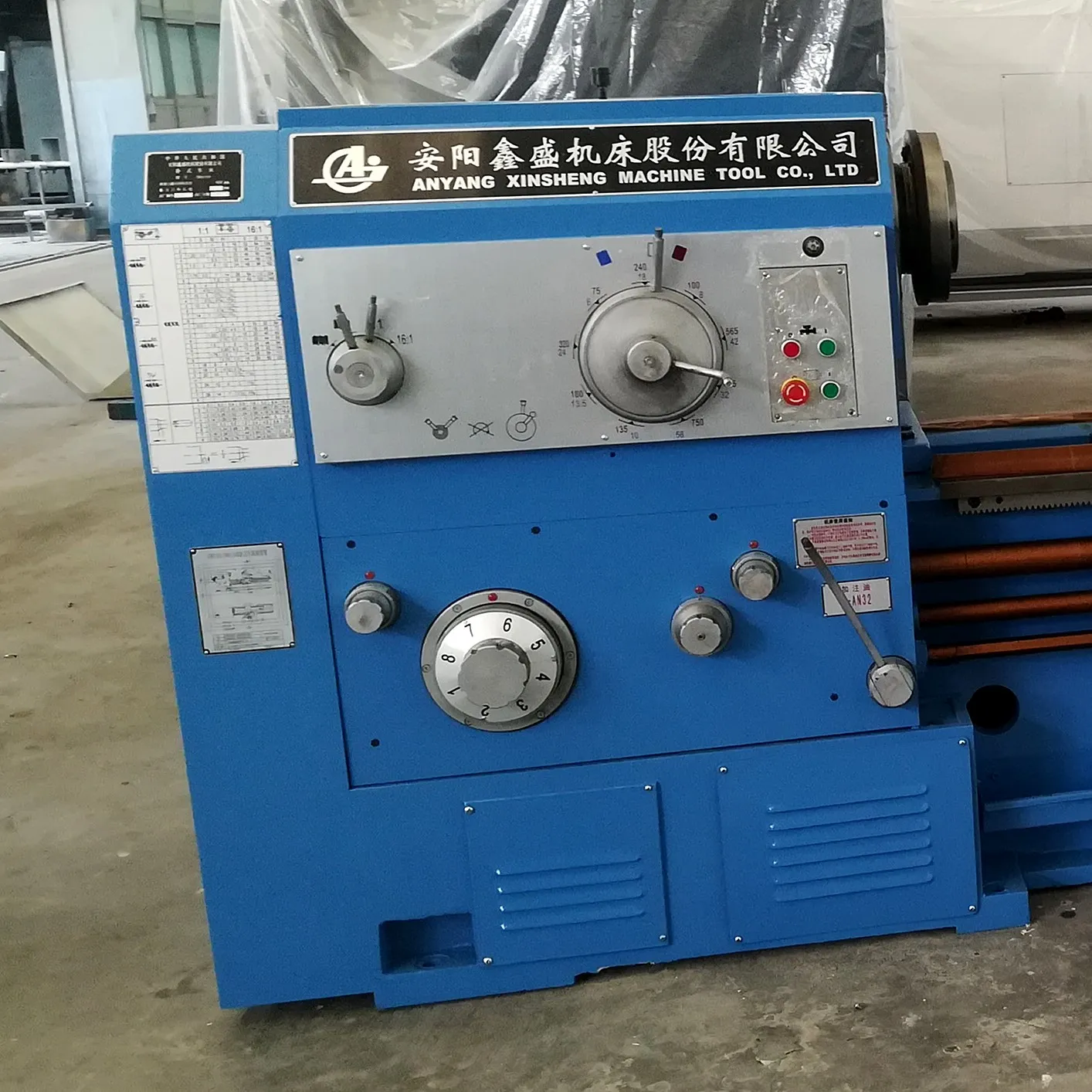

Lub thawv ncej loj txais yuav lub iav ceev- hloov qauv, nrog cov cuab yeej paub tab, kho qhov nrawm ntawm cov pab pawg rub, loj qis - nrawm torque, thiab ruaj khov siab - ua haujlwm ceev. Cov khoom siv muaj zog sib hloov, tsis tshua muaj nqi txij nkawm, thiab kev saib xyuas yooj yim thiab cov khoom siv hloov pauv yav tom ntej.

Cov nqi ua tau zoo

Piv nrog rau CNC tshuab dhos zoo sib xws, XS lathes muaj tus nqi pheej yig dua, tsim nyog rau kev ua haujlwm nrog cov peev nyiaj tsawg tab sis xav tau qee qhov tseeb, thiab yog ib qho ntawm cov khoom siv nyiam rau ntau lub tshuab ua haujlwm me me thiab kev cob qhia ua haujlwm.

Parameters ntawm Mini tig tshuab dhos (800mm viav vias)

Main technical specification
Muaj peev xwm
Hla lub txaj	mm			800
Swing tshaj carriage	mm			480
Qhov ntev tshaj plaws ntawm workpiece	mm	1500	2000	3000	4000	5000	6000
Qhov siab kawg tig ntev	mm	1350	1850	2850	3850	4850	5850
Dav ntawm kev taw qhia	mm	600
Spindle
Spindle nas code	mm	C11 (C15 yog ib qho tshwj xeeb configuration)
Txoj kab uas hla ntawm spindle hla lub qhov	mm	100 (140 yog ib qho tshwj xeeb configuration)
Taper qhov ntawm spindle		1:20
Taper qhov ntawm tailstock quill		mors 6
Tus naj npawb ntawm kev xa mus rau pem hauv ntej		18 yam
Tus naj npawb ntawm rov qab tig ceev		6 yam
Spindle ceev -Forward	r / min	5.5-750
Spindle ceev- Rov qab	r / min	10-775
Pub mov
longitudinal thiab cross		64;0.1~24.32
Hla - mus rau -longitudinal feed rate		½
Ntsia hlau pitch ntawm leadscrew	mm	12
Tus naj npawb thiab ntau yam ntawm metric xov		50 hom; 1-240 (mm)
Tus naj npawb thiab ntau yam ntawm inch xov		26 hom; 14-1 (cov hniav / nti)
Tus naj npawb thiab ntau ntawm cov xov module		53 hom; 0.5-120 (mm)
Tus naj npawb thiab ntau yam ntawm diametrical pitch xov		24 hom; 28-1 (cov hniav / nti)
Rapid traverse ceev ntawm carriage	mm/min	4000

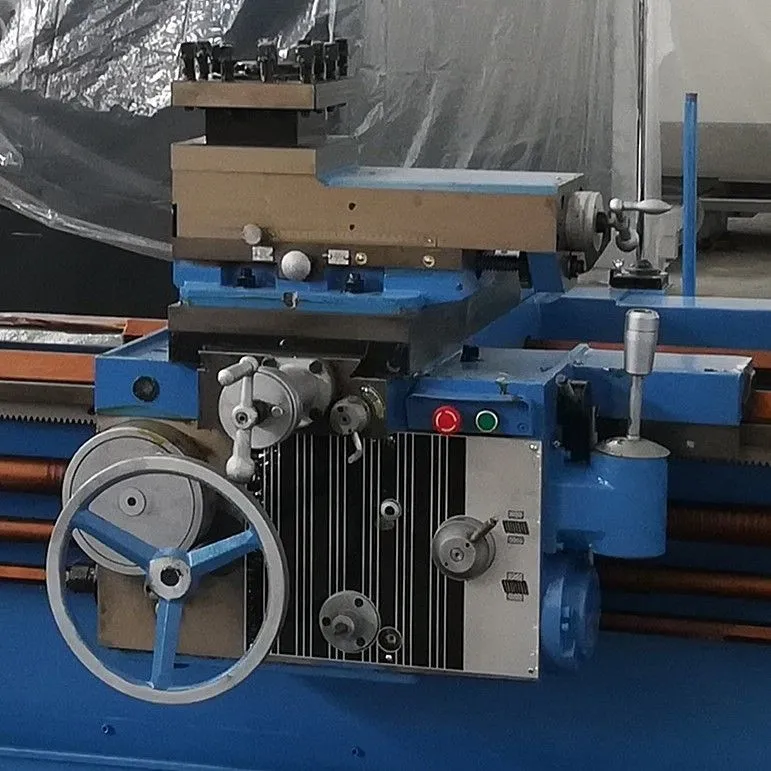

Tool ncej
Kev ncua deb ntawm spindle center-kab thiab lub dav hlau so	mm	33
Qhov loj ntawm lub cuab yeej shank	mm	32
Tool post swing range		± 90 degree
Max. taug kev ntawm sab saum toj swb	mm	200
Max. taug kev hla swb	mm	500

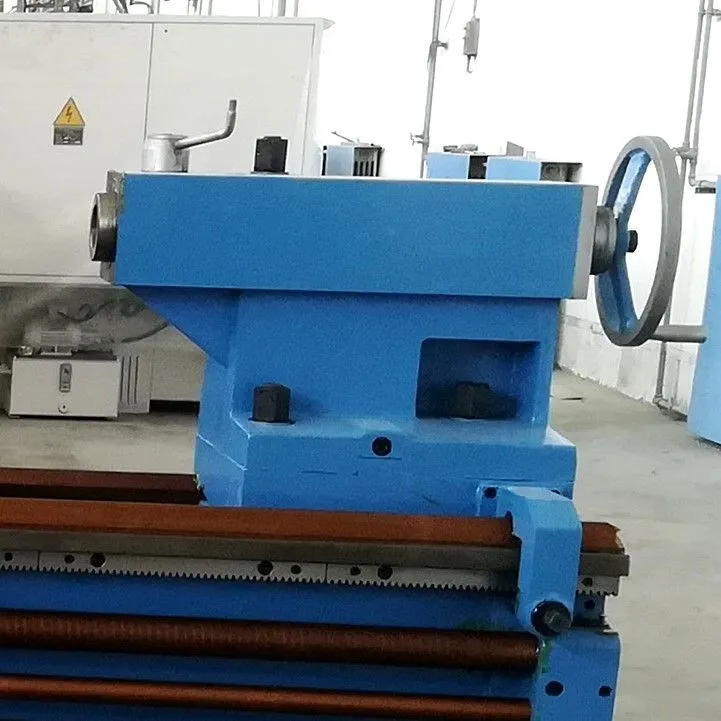

Tailstock
Txoj kab uas hla ntawm Tailstock quill	mm	100
Taug kev ntawm tailstock quill	mm	250
Taper qhov ntawm tailstock quill		mors 6
Kev lees txais
GB/T4020-1997 Qhov tseeb, sib dhos tshuab dhos
JB/T2322-1993 Cov ntsiab lus, cov tshuab dhos ua ke
Lwm yam
Main lub cev muaj zog	kws	11
Tshuab loj	kg	4900	5100	5500	6100	6900	7500
Tshuab tag nrho dimension
Ntev	mm	3670	3985	5165	6220	7400	8260
Siab	mm	1730
Dav	mm	1450
